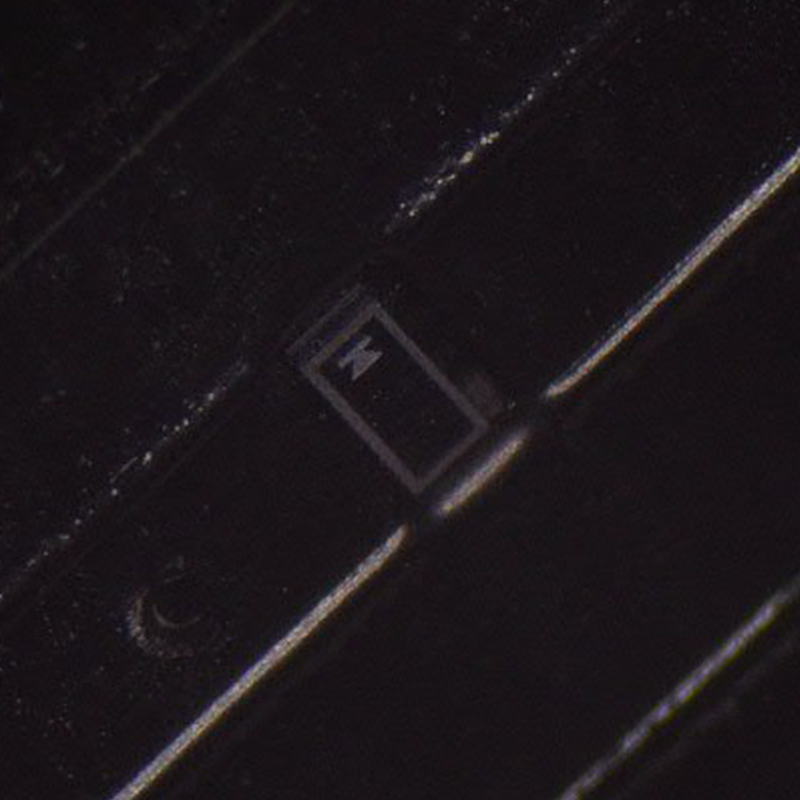

MADP-000907-14020P AIGaAs Pin Diode

Low Series Resistance

RoHS Compliant

Polyimide Scratch Protection

Silicon Nitride Passivation

Can be Driven by a Buffered TTL

2 Nanosecond Switching Speed

Millimeter Wave Switching & Cutoff Frequency

Ultra Low Capacitance

MACOM's MADP-000907-14020 is a solderable, flip-chip Aluminum Gallium Arsenide (AlGaAs) PIN diode.It is fabricated with MOCVD grown epitaxy using a process and design that optimizes device to device uniformity and produces extremely low parasitics.The diode exhibits an exceptionally low RC product (0.1ps) and a 2-3 nS switching speed.The chips are fully passivated with silicon nitride and have an added BCB polymer layer for scratch protection.The BCB protective coating prevents damage to the diode junction area and anode air-bridge during handling and assembly.The ultra low capacitance of the MADP-000907-14020 allows for operation at millimeter wave frequencies for RF switches and phase shifter applications.The diode is designed to be used in pulsed or CW applications, where single digit nS switching speed is required.The low capacitance of the MADP-000907-14020 makes it ideal for use in many microwave multi-throw switch assemblies, where the series capacitance of each “off” port adversely loads the input and affects VSWR.
